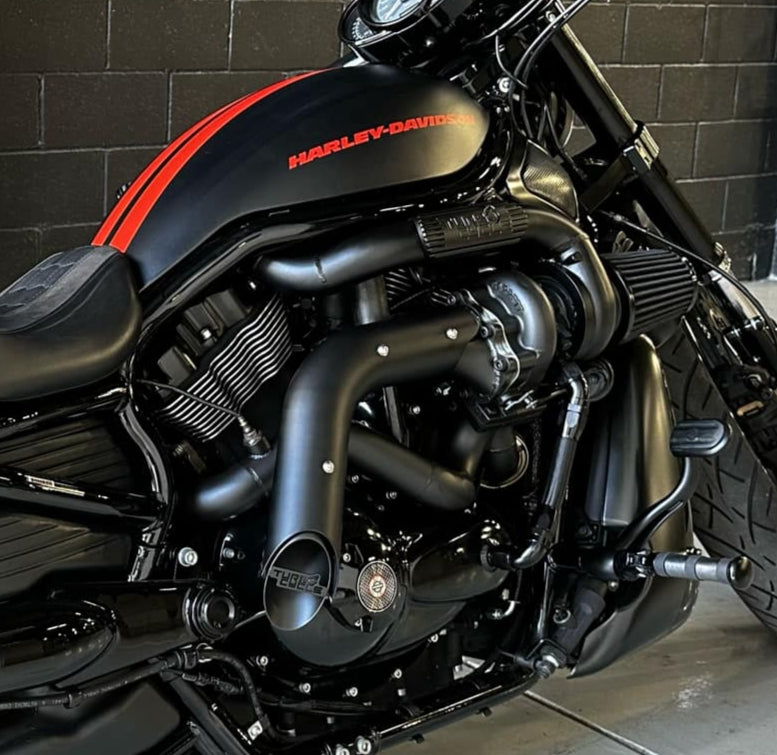

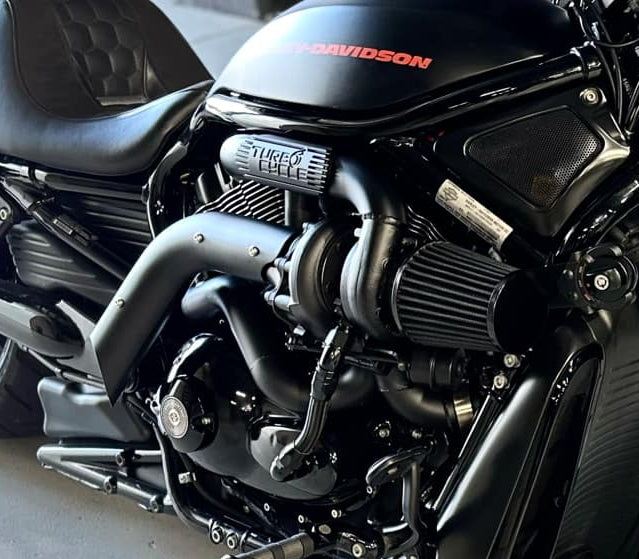

Vrod Turbo System

All our turbo systems are precision-fabricated from premium 304 stainless steel, featuring fully TIG-welded construction for exceptional strength, durability and performance.

Our short-runner header design, incorporating oversized 2-inch OD tubing, is engineered to promote rapid turbo spool-up while maximising exhaust flow for outstanding top-end horsepower.

Each system features our custom-fabricated TurboCycle™ intake plenum, incorporating integrated 58mm bellmouth runners to optimise airflow, improve charge distribution and deliver unrestricted intake flow for maximum performance throughout the powerband.

RAW Turbo System – Features & Specifications

Engineered for exceptional performance, rapid turbo response and outstanding top-end horsepower, our RAW Turbo Systems combine premium materials, precision fabrication and proven performance components.

Turbocharger & Performance

• Garrett GT25 Ball Bearing Turbocharger

• Ported Turbo Housing and Wastegate for optimised exhaust flow and boost control

• Capable of producing 220+ HP, depending on engine configuration and supporting modifications

Exhaust System

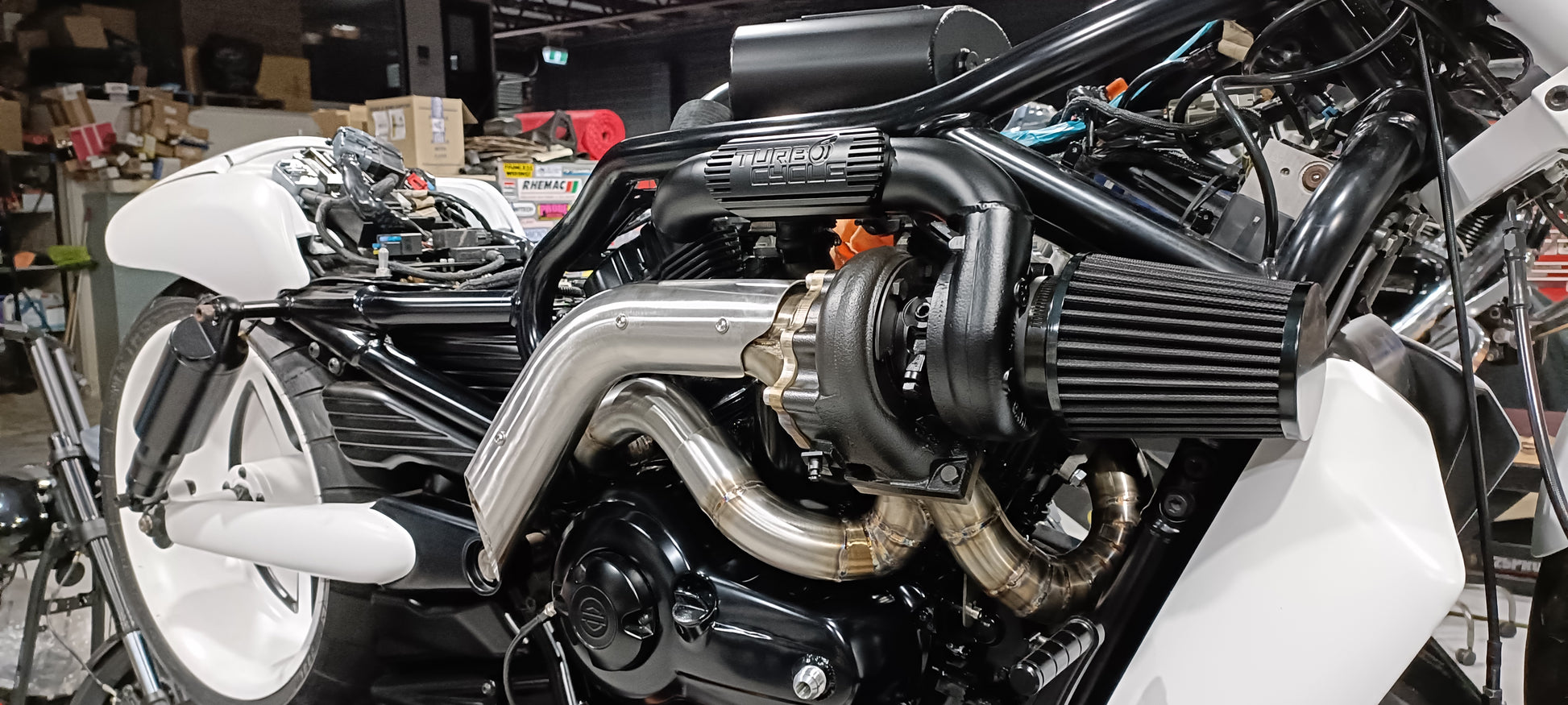

• Fully TIG-Welded 2" OD 304 Stainless Steel Headers – Satin Finish

• Custom-Fabricated 304 Stainless Steel Dump Pipe – Satin Finish

• 304 Stainless Steel Heat Shield – Satin Finish

• Turbo Exhaust Housing – Black Ceramic Coated

• Optional Upgrade: Black Ceramic Coating for Headers, Dump Pipe and Heat Shield

Intake & Charge System

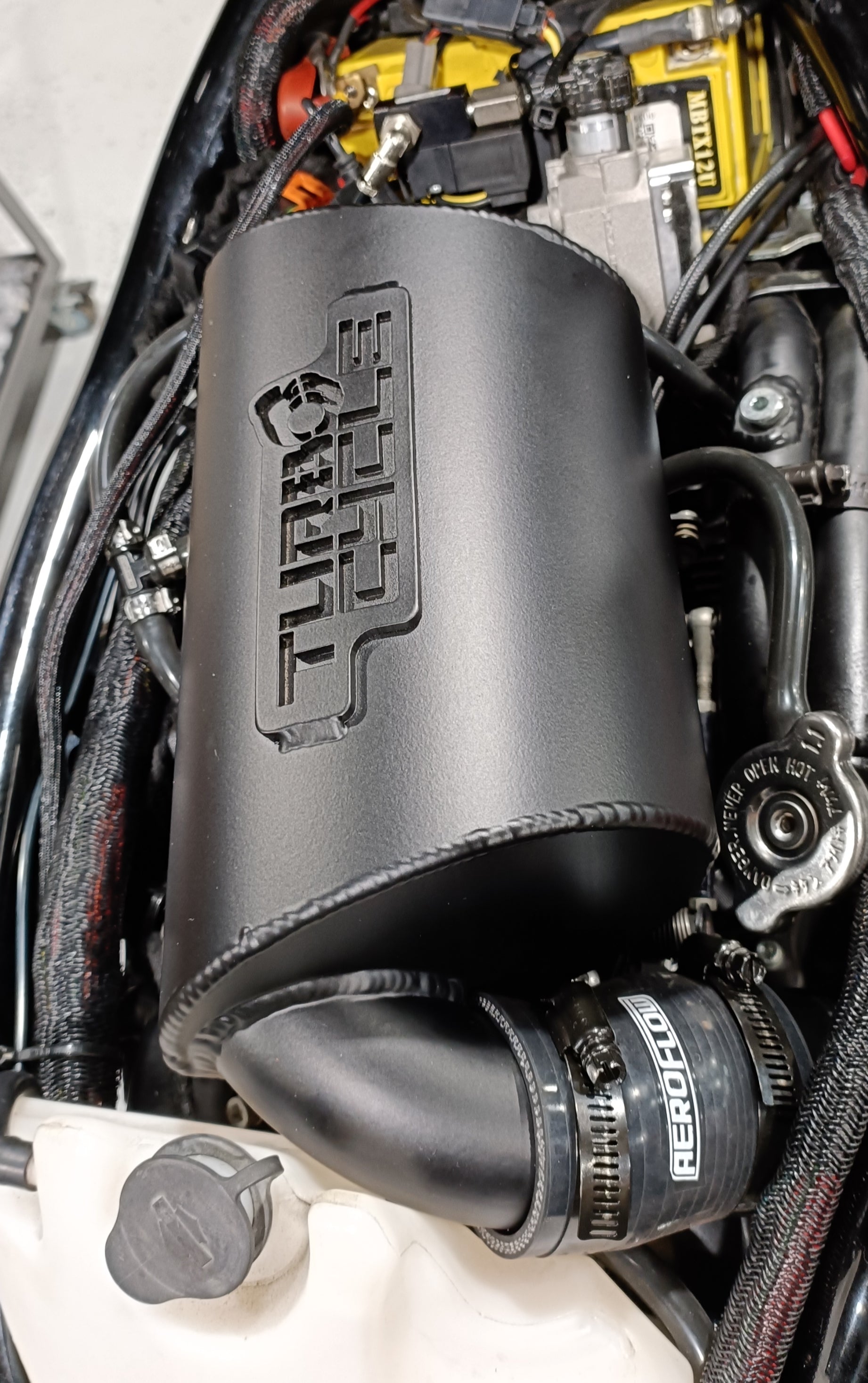

• Custom-Fabricated Aluminium Intake Plenum

• Precision-Machined Billet 58mm Bellmouth Intake Runners

• Custom-Fabricated Charge Pipe and Compressor Connection – Black Powder-Coated Finish

Instrumentation & Installation Components

• CNC-Machined Billet Gauge Block

• AutoMeter Z-Series Boost Gauge

• Turbo Oil Lines and AN Fittings

• All Required Installation Hardware

Performance by Design

Our short-runner, oversized 2" stainless steel header design is engineered to deliver rapid turbo spool-up without compromising high-RPM exhaust flow.

Combined with our custom intake plenum and 58mm billet bellmouth runners, the system is designed to maximise airflow efficiency and support exceptional horsepower potential.

220+ HP Performance Capability – Actual horsepower output is dependent on engine configuration, compression ratio, camshaft selection, fuel system and supporting modifications.
